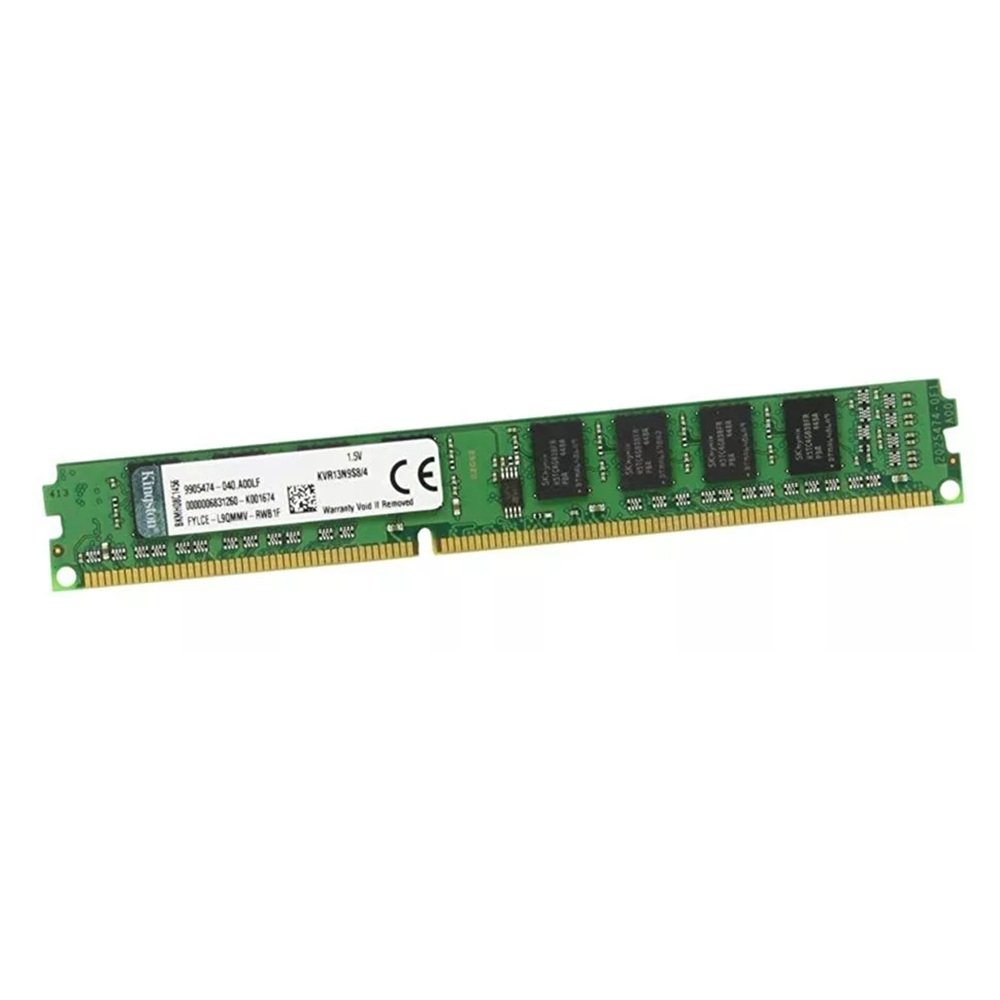

Kingston memoria PC DIMM 4GB DDR3 1333Mhz 1.5V Non-ECC KVR13N9S8/4

Kingston memoria PC DIMM 4GB DDR3 1333Mhz 1.5V Non-ECC Unbuffered
Referencia proporcionada por el fabricante : KVR13N9S8/4
kingston 4GB 1Rx8 512M x 64-Bit PC3-10600 CL9 240-Pin DIMM

Características técnicas :

• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 667MHz fCK for 1333Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
• 8-bit pre-fetch
• Bi-directional Differential Data Strobe
• Internal(self) calibration: Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 0.740” (18.75mm) or 1.180” (30.00mm)

Especificaciones :

Row Cycle Time (tRCmin) 49.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 36ns (min.)
Operating Temperature 0o C to 85o C
Storage Temperature-55o C to +100o C
